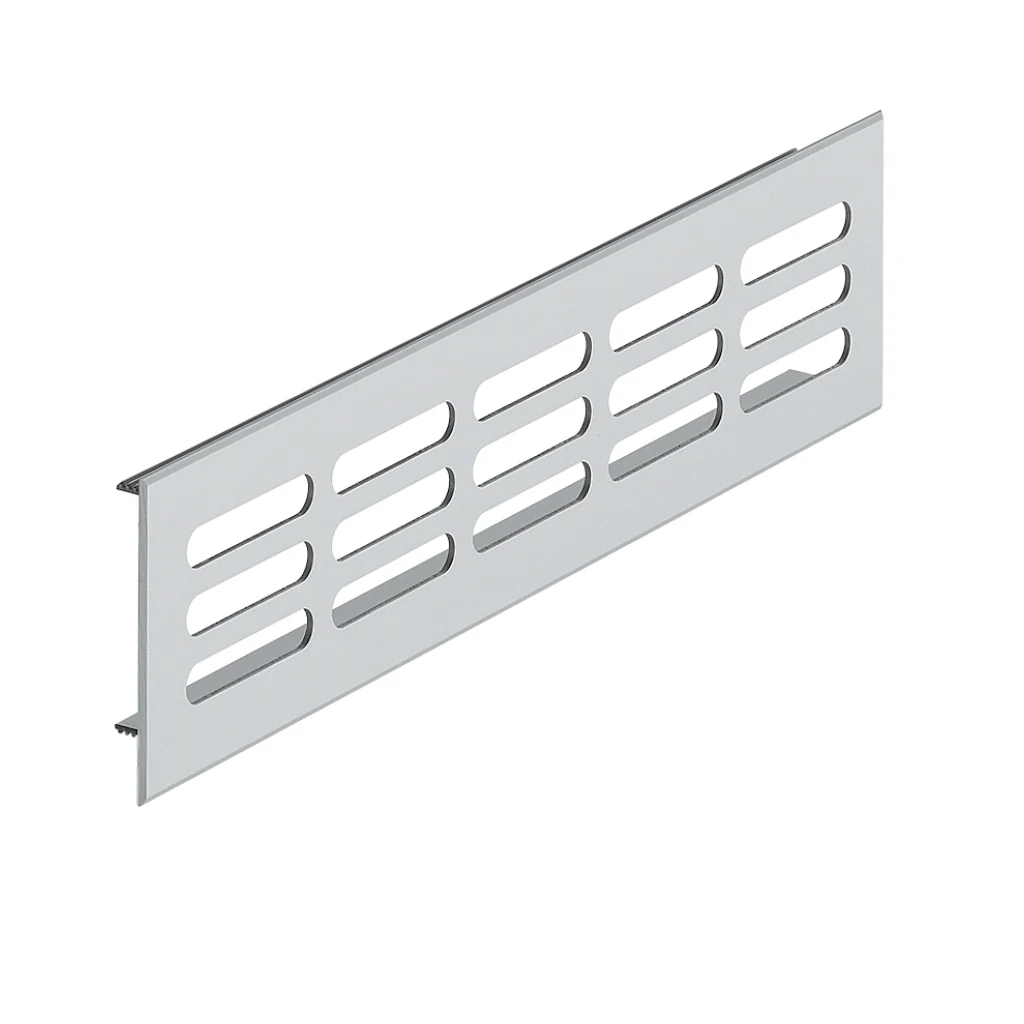

Aluminium Ventilation Grill, Straight Edged | Various Sizes
| Version: |
Visible edges bevelled, |
| Installation: | For recess mounting |
| Material: | Aluminium, with ribbed flanges |
| Finish: | Silver coloured anodised E6/EV1 |
| Apertures: | 40 x 7.5 mm |
Options:
Width 60mm

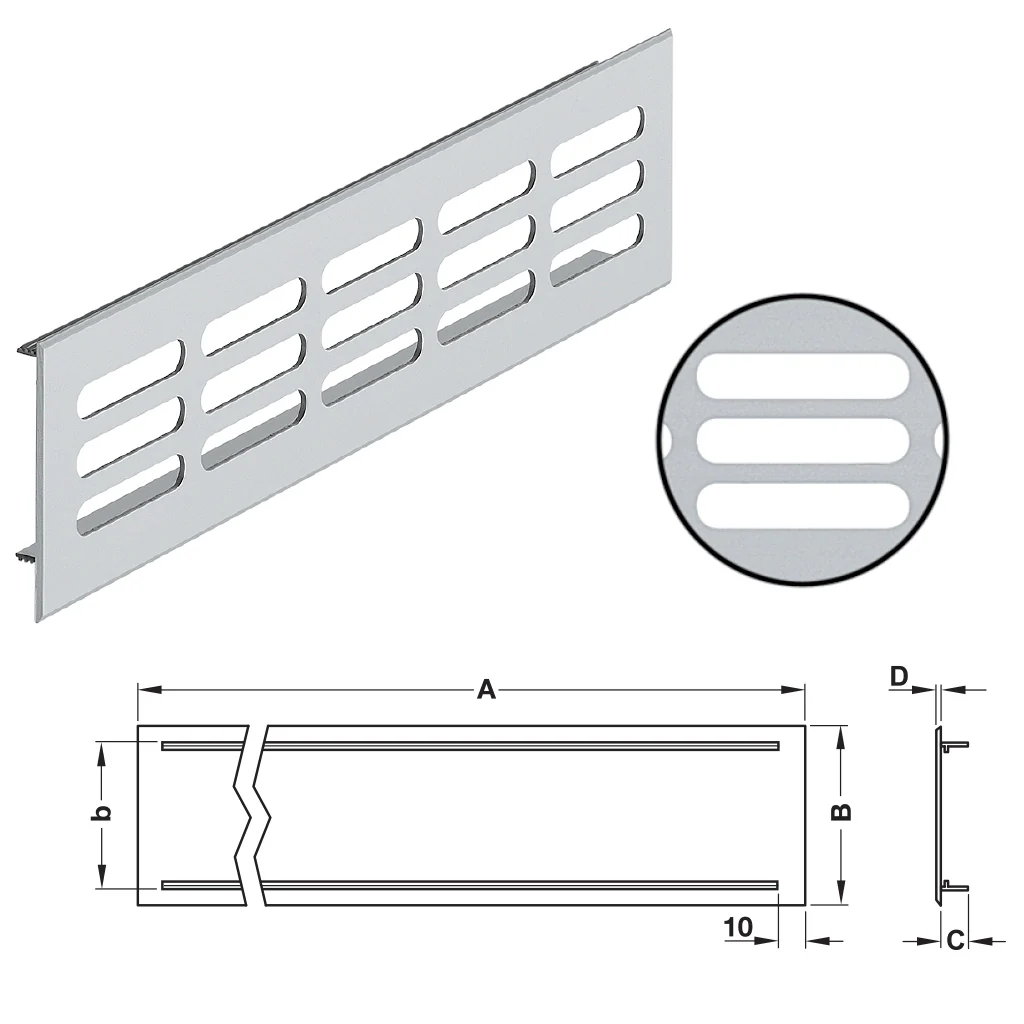

Width B = 60 mm, b = 46 mm, C = 13.5 mm, D = 1.5 mm
| Length A (mm) | 250 | 300 | 400 | 500 | 1000 | 2000 |
| Flange length (mm) | 228 | 278 | 378 | 478 | 978 | 2000 |
| Ventilation (cm2 ) | 45 | 53 | 71 | 89 | 186 | 372 |
Width 80mm
Width B = 80 mm, b = 65 mm, C = 15 mm, D = 1.5 mm
| Length A (mm) | 250 | 300 | 400 | 500 | 1000 | 2000 | 3000 |
| Flange length (mm) | 228 | 278 | 378 | 478 | 978 | 2000 | 3000 |
| Ventilation (cm2 ) | 60 | 71 | 95 | 118 | 245 | 490 | 735 |
Width 100mm
Width B = 100 mm, b = 85 mm, C = 15 mm, D = 1.5 mm
| Length A (mm) | 250 | 300 | 400 | 500 |
| Flange length (mm) | 228 | 278 | 378 | 478 |
| Ventilation (cm2 ) | 89 | 107 | 142 | 178 |
